Description

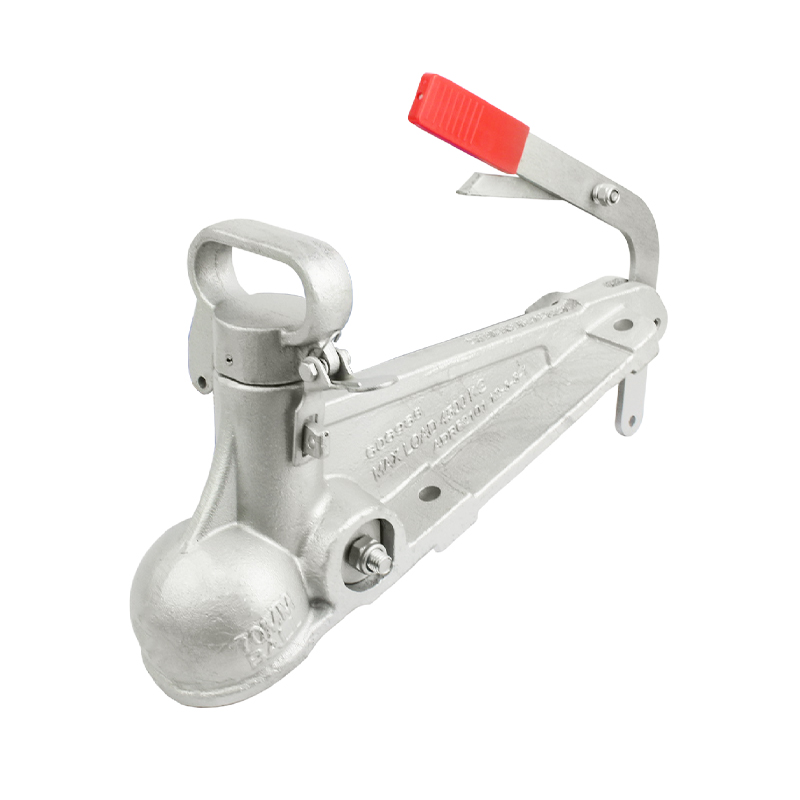

Electric coupling with hand brake lever, suited to trailers with a GTW less than 4500kg. Rated to 4500kg (4.5T), this coupling is suited for 70mm tow balls and electric braking systems. Features a quick release mechanism for quick and easy connection to your tow vehicle. For extra security, there is a padlock facility to prevent detaching of the coupling. Complying with Australian standards, our coupling is stamped with the manufacturer’s mark, ‘AS4177.3′, ’70mm’ and ‘4500kg’. This coupling is ADR approved and tested with CTA number CTA-060789.

Advantages

Electric braking capacity
Hand brake lever
Quick release paddle
Adjustable screw
Corrosion resistant
Padlock facility

What’s Included

1 x Electric 70mm Tow Ball Coupling

Quick Release Paddle allows you to attach and detach the coupling easily without the use of tools.
Zinc painted, the coupling is protected from harsh Australian weather and is built to last.
Hand brake lever to ensure your trailer is stationary when not connected to a tow vehicle.

Specifications

Brakes: Electric

Suits: 70mm Tow Ball

Rating: 4500kg (4.5T)

Bolt Pattern: 185 x 55mm

Bolt Hole Size: 12mm (approx.)

Finish: Zinc

Application: Bolt On

Compliance: 4177.3

CTA Number: CTA-061100

ADR: ADR Approved & Tested
