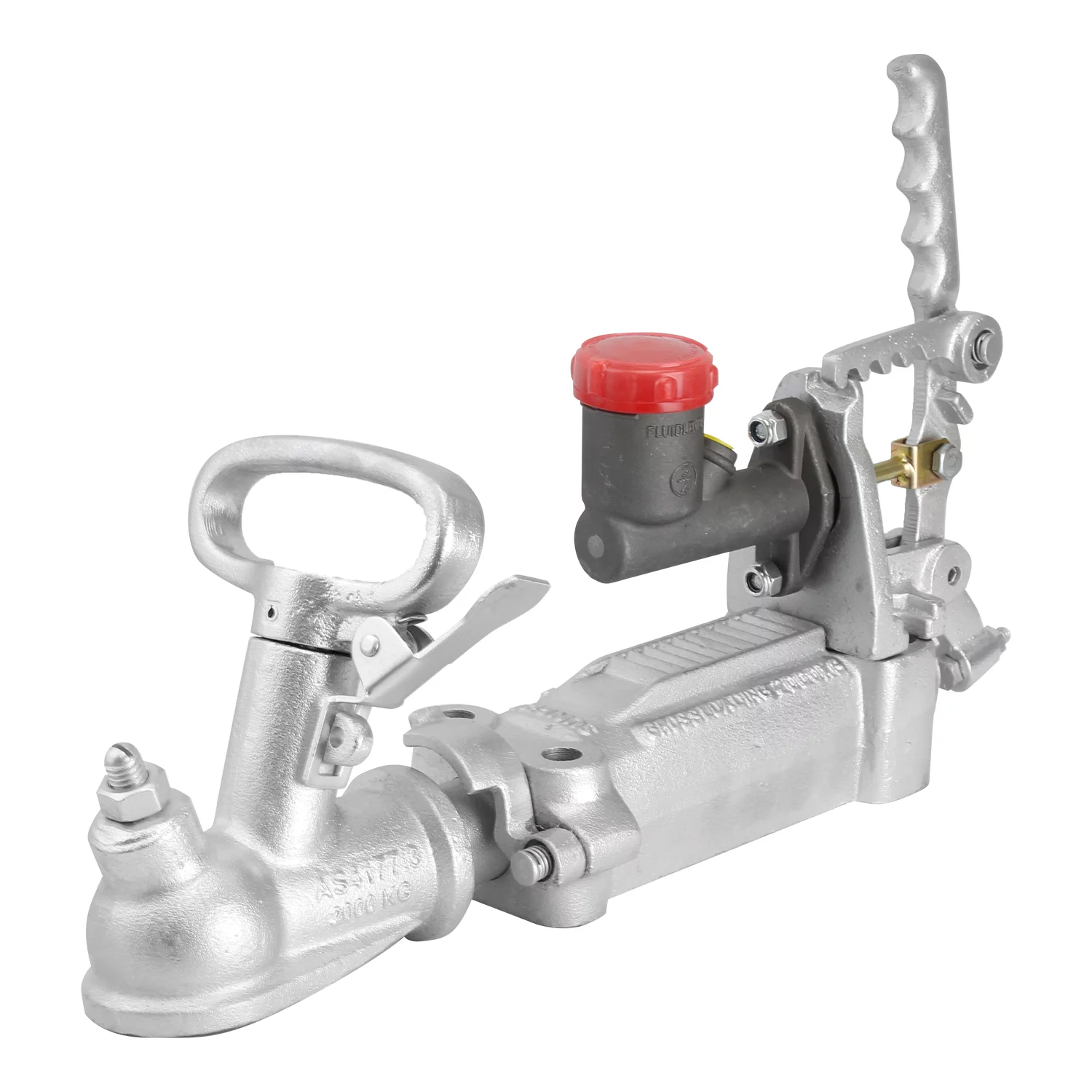

Hydraulic Override Coupling Complete 50mm 2T

Description

Equipped with a hydraulic 3/4″ master cylinder, this override coupling is suited for trailers with a GTW between 750kg and 2000kg and for trailers that use a hydraulic braking system. Featuring a sliding shaft body with a coil spring that gets compressed when the vehicle brakes, the compression of the spring activates the braking system by pumping fluid to the brakes. The quick release mechanism also allows for quick and easy connection to a 50mm towball. For extra security, there is a padlock facility to prevent detaching of the coupling. Advantages

• Hydraulic braking capacity
• Quick release paddle
• Adjustable screw
• Corrosion resistant
• 3/4″ master cylinder
• Reverse latch

What’s Included

• 1 x Hydraulic Override 50mm Tow Ball Coupling Complete

• Features
  • Hydraulic 3/4″ master cylinder to pump brake fluid to hydraulic brakes
  • Quick release paddle allows you to attach and detach the coupling easily without the use of tools
  • Reverse latch to disengage brakes when reversing, remove latch during normal towing use
• Specifications
  Brakes

  Hydraulic

  Suits

  50mm Tow Ball

  Rating

  2000kg (2T)

  Bolt Pattern

  185 x 55mm

  Finish

  Zinc

  Application

  Bolt On

  Compliance 4177.3
